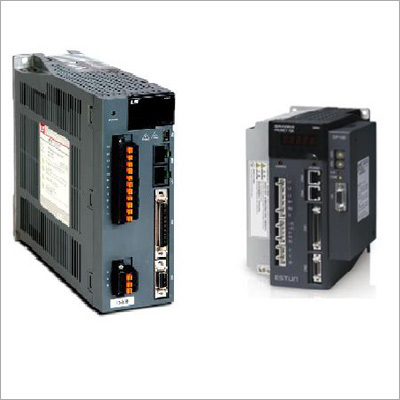

AC Servo Drive

Get a Price/Quote

AC Servo Drive Specification

IP Rating
IP20

Frequency
50/60 Hz

Weight
Approx. 1.8 kg

Sensor Type
Encoder Feedback

Phase
Single/Three Phase

Application
Industrial Automation, Motion Control

Cable Length
1.5 Meter

Load Capacity
Up to 2.2 kW Servo Motor

Control Type
Digital

Automation Grade
Automatic

Remote Control
Yes

Connectivity Type
RS232, RS485

Mounting Type
Panel Mount

Features
Overvoltage Protection, Short Circuit Protection, Overload Protection, High Precision Positioning

Drive Type
Closed Loop Servo Drive

Material
Aluminium Alloy Housing, electronic components

Power
750 W

Temperature
0°C to +55°C (Operating)

Voltage
220V AC

Vibration Resistance
5.9 m/s2 max

Efficiency
>90%

Display Type
LED Status Indicator

Altitude
1000 m

Communication Protocols
Modbus/RTU, CANopen

Insulation Resistance
Over 50 M (500V DC)

About AC Servo Drive

Owing to our knowledge as well as professional workforce, we have achieved a noted position as a reputed manufacturer and supplier of AC Servo Drive. Our drive is best known for position precision, low speed stability & response performance. The drive is manufactured by our skilled personnel team using high quality materials and components. The drives can be customized as per the clients requirements. We offer the AC Servo Drive at the cost effective prices.

Features:

Simple and convenient setting
Abundant communication functions
Less debugging time

Servo Drive for 800 Watts motor

Servo System Package consists of ::

1) Servo motor

2) Servo Drive

3) CN1 Connector

4) 5 Mtr Encoder cable

5) 5 Mtr Motor cable

Optional Accessories
Motion Controllers , PLC , Display HMI , Control panels etc

Advanced Motion Control for Industrial Automation

This AC Servo Drive delivers high-precision positioning for industrial automation and motion control applications. Its closed-loop system and encoder feedback enable exceptional accuracy, meeting the needs of manufacturers seeking reliable and responsive motor control. Suitable for both single and three-phase operations, the drive integrates seamlessly with various industrial setups, supporting a wide load range and digital connectivity.

Built for Reliability and Safety

Designed with multiple layers of protection, the servo drive includes overvoltage, short circuit, and overload safeguards, ensuring operational safety. The robust aluminium alloy housing enhances durability, while the efficient heat dissipation optimizes longevity. Rated for IP20 and able to withstand challenging operating conditions, this drive is a dependable choice for continuous industrial use.

FAQs of AC Servo Drive:

Q: How does the AC Servo Drive improve industrial motion control processes?

A: The AC Servo Drive enhances motion control by providing high-precision positioning through closed-loop control and encoder feedback. Its robust communication protocols (Modbus/RTU, CANopen) and digital interfacing allow smooth integration into automation systems, improving responsiveness and accuracy across various industrial applications.

Q: What are the main benefits of using this servo drive in automation solutions?

A: Key benefits include high efficiency (>90%), robust protection (overvoltage, short circuit, overload), reliable performance in harsh conditions (vibration resistance, aluminium housing), and compatibility with diverse equipment (up to 2.2 kW servo motors). Its encoder feedback ensures accurate positioning, making it ideal for high-precision tasks.

Q: When should I choose a servo drive with both single and three-phase compatibility?

A: Opt for a servo drive supporting both single and three-phase input when you require versatility, whether for varying power supply conditions or planning future expansion. This feature allows seamless integration across different industrial environments without changing the drive unit.

Q: Where can this servo drive be installed, and what mounting type does it support?

A: This servo drive is designed for panel mounting, making it suitable for installation inside industrial control cabinets. It operates effectively at altitudes up to 1000 meters, within temperatures from 0C to +55C, and tolerates moderate vibration, ensuring adaptability to most industrial settings.

Q: What is the process for connecting and controlling the servo drive remotely?

A: Remote control is facilitated via RS232 or RS485 connectivity, allowing integration with PCs or PLCs. The drive can be configured using Modbus/RTU or CANopen protocols, enabling operators to monitor status (through the LED status indicator) and adjust parameters without local manual intervention.

Q: How does the drive maintain safety during operation?

A: Operational safety is ensured through built-in overvoltage, overload, and short circuit protections. The housings insulation resistance exceeds 50 M, preventing electrical hazards, while the IP20 rating protects against solid object ingress in standard industrial environments.

Q: What applications are best suited for this AC Servo Drive?

A: This drive excels in industrial automation and precise motion control projects, such as robotics, CNC machining, conveyor systems, and packaging machinery. Its high load capacity, precise feedback, and advanced communication features make it suitable for manufacturers, service providers, and system integrators seeking reliable, high-performance motion solutions.
