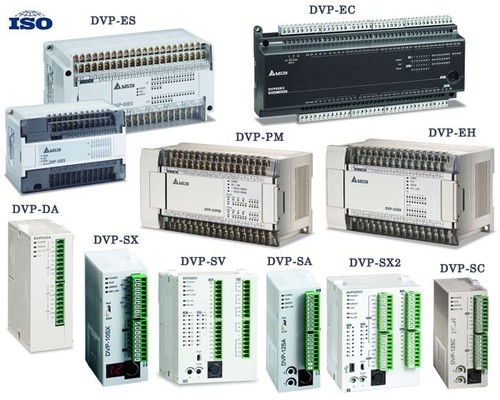

Delta Motion Controller DVP10PM

Get a Price/Quote

Product Details:

Warranty 1 Year
Remote Control Not Supported
Automation Grade Industrial
Frequency 50/60 Hz
Application Motion Control
Processor Type Advanced Processing Module
Weight Approx. 0.4 kg
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Delta Motion Controller DVP10PM Product Specifications

Automation Grade Industrial
Frequency 50/60 Hz
Application Motion Control
Weight Approx. 0.4 kg
Processor Type Advanced Processing Module
Connectivity Type Wired
Features Compact Design High Performance
Voltage 24 VDC
Warranty 1 Year
Remote Control Not Supported
Mounting Type DIN Rail
Temperature 0 to 55C
Phase Single Phase
Material Plastic and Metal
Control Type Digital
Power 24 VDC

Product Description

Delta Motion Controller DVP10PM

MPU points: 24
Max. I/O points: 256
Program capacity: 64k steps
Built-in hardware digital filter for counting
6 high-speed counters (O.C. 200kHz*4, differential 200kHz*2), supporting U/D, U/D Dir, A/B, 4A/B counting modes
4 differential 1MHz outputs, supporting U/D, U/D Dir, A/B output modes
Supports 1-speed (immediate stop after the mark arrives), 2-speed, zero return, MPG and single axis function
Highly accurate PWM 200kHz output, resolution 0.3%
Electronic gear function
8 high-speed captures (mark correction, frequency measurement), comparative output, mark/mask function (for bag making)
8 external interruptions for setting up rising- and falling-edge triggers, 1 timed interruption
Highly efficient command execution. LD: 0.1375s, MOV: 2.1s

FAQs of Delta Motion Controller DVP10PM:

Q: What is the temperature range for the Delta Motion Controller DVP10PM?

A: The temperature range for the Delta Motion Controller DVP10PM is 0 to 55C.

Q: What is the connectivity type for the Delta Motion Controller DVP10PM?

A: The connectivity type for the Delta Motion Controller DVP10PM is Wired.

Q: What is the warranty period for the Delta Motion Controller DVP10PM?

A: The warranty period for the Delta Motion Controller DVP10PM is 1 Year.

Q: What is the weight of the Delta Motion Controller DVP10PM?

A: The weight of the Delta Motion Controller DVP10PM is approximately 0.4 kg.

Q: Does the Delta Motion Controller DVP10PM support remote control?

A: No, the Delta Motion Controller DVP10PM does not support remote control.
