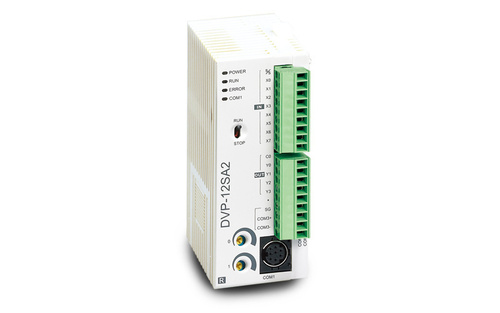

Delta PLC DVP12SA

Get a Price/Quote

Product Details:

Mounting Type DIN Rail Mounting
Control Type Programmable Logic Controller (PLC)
Warranty 1 Year
Drive Type Electronic
Phase Single Phase
Processor Type Integrated high-speed processor
Connectivity Type Wired
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Delta PLC DVP12SA Product Specifications

Automation Grade High
Remote Control Not Supported
Sensor Type Digital and analog input interfaces
Features Compact design high performance
IP Rating IP20
Material Plastic and electronic components
Frequency 50/60 Hz
Weight 0.5 kg
Connectivity Type Wired
Application Industrial Automation
Processor Type Integrated high-speed processor
Power 24V DC
Phase Single Phase
Drive Type Electronic
Voltage 100-240V AC
Warranty 1 Year
Temperature 0C to 55C
Control Type Programmable Logic Controller (PLC)
Mounting Type DIN Rail Mounting

Product Description

Delta PLC DVP12SA

MPU points: 12 (8DI + 4DO)
Max. I/O points: 492 (12 + 480)
Program capacity: 16k steps
COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
Can be master or slave.
High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.

Built-in High-Speed Counters

FAQs of Delta PLC DVP12SA:

Q: What is the connectivity type of Delta PLC DVP12SA?

A: The connectivity type of Delta PLC DVP12SA is wired.

Q: What is the IP rating of Delta PLC DVP12SA?

A: The IP rating of Delta PLC DVP12SA is IP20.

Q: What is the power requirement for Delta PLC DVP12SA?

A: Delta PLC DVP12SA requires 24V DC power.

Q: What is the warranty period for Delta PLC DVP12SA?

A: Delta PLC DVP12SA comes with a 1 year warranty.

Q: What is the weight of Delta PLC DVP12SA?

A: Delta PLC DVP12SA weighs 0.5 kg.
