Mycom Stepper PF 466-02A (B)

Get a Price/Quote

Product Details:

Connectivity Type Wired
Features Compact design Precise movement
Components PF466-02A (B)
Cooling System None
Cover Material Metal
Control System Stepper Control
Base Material Metal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mycom Stepper PF 466-02A (B) Product Specifications

Application Stepper Motor
Surface Color Metallic
Components PF466-02A (B)
Connectivity Type Wired
Features Compact design Precise movement
Material Metal
Base Material Metal
Product Type Stepper Motor
Control System Stepper Control
Dimension (L*W*H) 56.4 x 56.4 x 47.5 mm
Cover Material Metal
Cooling System None

Product Description

Mycom PF 466-02A (B)

Motor Model : PF 466-02A (B)

8.5 (kg-cm) Max.Holding Torque

280 (gcm2) Rotor Inertia

1.8/0.9 (Step Angle) Half/Full

2.0 (Amps) Phase Current

3.6 (Vdc) Voltage

1.8 (Ohms) Phase Resistance

3.0 (mH1KHz) Phase Inductance

0.70 (kg) Motor Weight

FAQs of Mycom Stepper PF 466-02A (B):

Q: What are the dimensions of the Mycom Stepper PF 466-02A (B)?

A: The dimensions of the Mycom Stepper PF 466-02A (B) are 56.4 x 56.4 x 47.5 mm.

Q: What is the base material of the Mycom Stepper PF 466-02A (B)?

A: The base material of the Mycom Stepper PF 466-02A (B) is metal.

Q: What type of connectivity does the Mycom Stepper PF 466-02A (B) have?

A: The Mycom Stepper PF 466-02A (B) has wired connectivity.

Q: Does the Mycom Stepper PF 466-02A (B) have a cooling system?

A: No, the Mycom Stepper PF 466-02A (B) does not have a cooling system.

Q: What is the control system of the Mycom Stepper PF 466-02A (B)?

A: The control system of the Mycom Stepper PF 466-02A (B) is stepper control.

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Stepper motors' category

42H-115-60-4A1 Product Type : Other, Stepper Motor Application : Industrial Automation Components : Stepper Motor Features : High Precision Low Noise Dimension (L*W*H) : Varies (based on motor size) Surface Finish : Other, Powder Coated Finish Material : Other, Steel and Aluminum Way : Unipolar/Bipolar Base Material : Other, Metal Control System : Motor Driver Control Cover Material : Other, Aluminum Surface Color : Black Standard : CE ISO Cooling System : None Connectivity Type : Wired Rated Current : 4A Current Rating : 4A Rated Voltage : 2448V DC Rated Operation Voltage : 2448V DC Operating Voltage : 2448V DC Protection Class : Class B Warranty : 1 Year IP Rating : Ip40 Maximum Output Current : 4A Protection Level : Basic Power Protection, Other

Send Inquiry

35HS01 Leadshine Stepping motor Product Type : Stepping motor, Other Application : Industrial automation Components : Rotor stator shaft Features : High precision dual shaft low noise Dimension (L*W*H) : 42.3mm x 42.3mm x 34.0mm Surface Finish : Smooth, Other Material : Steel and iron, Other Way : 2phase Base Material : Steel, Other Control System : Stepper motor driver Cover Material : Metal Surface Color : Other, Gray/Metallic Standard : Leadshine standards Cooling System : Passive Connectivity Type : Wired Rated Current : 1.0A Current Rating : 1.0A Rated Voltage : 24V Rated Operation Voltage : 24V Operating Voltage : 12V to 36V Protection Class : Class I Warranty : 1 year IP Rating : Ip40 Protection Level : Other, Low

Send Inquiry

Stepping motor Motionking 23HS1430 Product Type : Other, Stepping Motor Application : Motion control in machinery and industrial automation Components : Stepper motor wiring diagram Features : 2 phase hybrid stepper motor 1.8degree step angle Dimension (L*W*H) : 57mm x Not specified x Not specified Surface Finish : Other, Smooth Material : Other, Steel and aluminum Way : 2phase excitation Base Material : Steel, Other Control System : Hybrid Stepper Motor Control Cover Material : Other, Aluminum Surface Color : Other, Silver and black Standard : 23HS series Cooling System : Air cooled Connectivity Type : Through wire connections Rated Current : 3.0A Current Rating : 3.0A Maximum Output Current : 3.0A

Send Inquiry

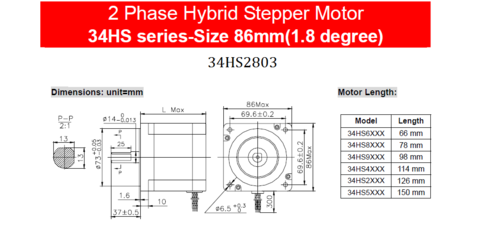

Stepper motor Motionking 34HS9803 Product Type : Other, Stepper Motor Application : Stepper motor for motion systems Components : Hybrid Stepper Motor Features : High precision 1.8degree step angle 2phase hybrid Dimension (L*W*H) : Length 98mm flange size 86mm x 86mm Surface Finish : Other, Smooth metallic finish Material : Metal Way : 2Phase Base Material : Other, Metal Control System : Manual/Electronic control Cover Material : Other, Metal housing Surface Color : Other, Metallic Rated Current : 3.0A Current Rating : 3.0A Rated Voltage : 1224V DC Rated Operation Voltage : 1224V DC Operating Voltage : 1224V DC (typically)
