Size | 170 mm x 129 mm Overall (160mm x 100 mm PCB) 25mm deep |
|
|
Weight | 160 g |
|
|
Operating Temp. | 0 - 45 degrees C |
|
|
Control Inputs | Forward Limit, Reverse Limit, Datum Input, Feedhold Input. |
|
|
Communication Ports | RS232 channel: up to 128k baud. |
| RS485 channel: up to 128k baud. |
| CANbus port (DeviceNet and CANopen compatible) |
| Ethernet: 10/100 BaseT multiple port connection. |
|
|
Position Resolution | 64 bit position count |
|
|
Speed Resolution | 32 bits. Speed may be changed at any time. Moves may be merged. |
|
|
Interpolation modes | Linear 1-8 axes, circular, helical, CAM Profiles, speed control, electronic |
| gearboxes. |
|
|
Programming | Multi-tasking TrioBASIC system, maximum 10 user tasks. IEC61131-3 |
| programming languages. |
|
|
Servo Cycle | 125s minimum, 1ms default, 2ms max. |
|
|
Memory | 8 Mbyte user memory. 512,000 x 64 bit TABLE memory. Automatic fl ash |
| EPROM program and data storage. |
|
|
Real Time Clock | Capacitor backed for 10 days or power off. |
|
|
VR | 4096 global VR data in FLASH memory. (automatic-store) |
|
|
Expansion Memory | Socket for Micro SD Card. Used for storing programs and/or data. Format: |
| FAT32, up to 16 GBytes. |
|
|
Power Input | 600mA at 5V d.c. |
|
|
Amplifier Enable Output | Normally open solid-state relay. Maximim load 100mA, maximum voltage 29V. |
|
|
Analogue Outputs | 4 Isolated 12 bit +/-10V or 8 isolated 12 bit +/-10V. |
|
|
Analogue Inputs | 2 x 12 bit 0 to 10V |
|
|
Digital Inputs | 16 Opto-isolated 24V inputs |
|
|
Registration Inputs | 8 shared with inputs 0 to 7. |
|
|
Encoder Inputs | 4 / 8 differential 5V inputs, 6MHz maximum edge rate |
|
|
Stepper Outputs | 4 / 8 differential step / direction outputs 2MHz max rate |
|
|
Digital Outputs | 8 Opto-isolated 24V outputs. Current sourcing (PNP) 250 mA. (max. 1A per |
| bank of 8) |
|
|

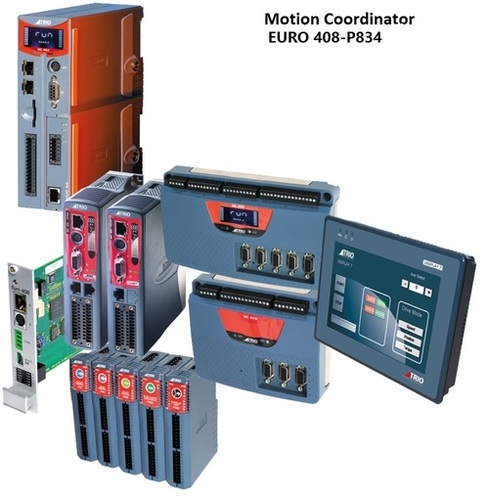

Product Code | P834 : Euro408, 8 axis servo |
| |
| |
| |
