Stepper

Get a Price/Quote

Stepper Specification

Rated Current
2.8A

Way
Single

Cabinet Material
Powder Coated Mild Steel

Current Rating
2.8A

Cover Material
Polycarbonate

Rated Operation Voltage
220V AC

Operating Voltage
220V AC

Protection Level
IP54

Features
Overload Protection, Compact Design, High Efficiency

Thickness
3 mm

Rated Insulation Voltage
500V

Control System
Microprocessor Based

Base Material
Mild Steel

Panel Type
Wall Mounted

Protection Class
Class I

Connectivity Type
Wired

Cooling System
Air Cooled

Components
Microcontroller, Power Supply, Stepper Motor Driver

Product Type
Stepper Motor Controller

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IS 694

Surface Color
Grey

Rated Voltage
220V

Frequency (MHz)
50 Hz

Maximum Output Current
2.8A

Dimension (L*W*H)
250 x 120 x 90 mm

Application
Industrial Automation

IP Rating
Ip54

Display Type
LED Indicator

Noise Level
Less than 45 dB

Storage Temperature Range
-10°C to 60°C

Operating Temperature Range
0°C to 50°C

Input Type
Digital Signal

Environmental Compliance
RoHS Compliant

Mounting Type
Surface Mount

Response Time
<5 ms

Resistance to Vibration
Yes

Shock Proof
Yes

About Stepper

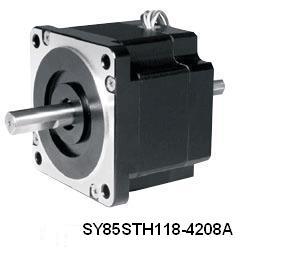

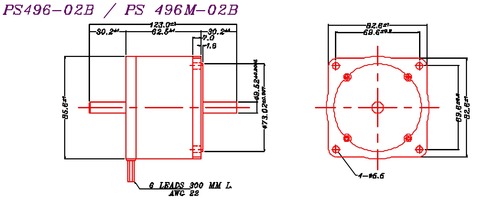

TECHNOVISION STEPPER MOTORS
NEMA Standards	Frame Size	Torque ( Kgcm )	Number of Leads
NEMA17	42 mm	1.6	4 , 6 , 8
		4.4	4 , 6 , 8
		5.7	4 , 6 , 8
NEMA23	57 mm	7	4 , 6 , 8
		10	4 , 6 , 8
		18	4 , 6 , 8
		28	4 , 6 , 8
NEMA24	60 mm	10	4 , 8
		18	4 , 8
		32	4 , 8
NEMA34	85 mm	34	4 , 8
		46	4 , 8
		68	4 , 8
		85	4 , 8
		120	4 , 8
NEMA42	110 mm	150	4 , 8
		220	4 , 8
		300	4 , 8
ForDetails Contact : +91-9867528528 / 9619312807 / 9869279756 / 022-27464402

High Precision
Low Motor Heating
Smooth Movement
Low Movement Noise

Customized Stepper Motor Models
Customized Stepper Motor Models
Frame Size	28 mm to 130 mm
Torque	0.5 Kgcm to 300 Kgcm
Current	0.3A to 8.5A
RPM	Load dependent upto 800 RPM
Connections	Series / Parallel / Unipolar Bipolar
Leads	8 Lead / 4 Leads / 6 Leads
Shaft	Single / Double with Keyway / Dcut / Round
Step Angle	1.8 degree , 0.9 degree , 0.72 degree
Motor Length	25 mm to 250 mm
Shaft Diameter	4 mm to 22mm

Allied Accessories :

Pulse Generators , Motion Controller , PLC , HMI , DC Drives , Servo motors , Servo Drives , Design , Programming , Installation , Commissioning , Wiring , circuit Diagram , Documentation, Production Trials

Superior Protection and Durability

Engineered for tough industrial settings, this stepper provides IP54 ingress protection, with a rugged mild steel cabinet and polycarbonate cover. Its resistance to vibration and shock, coupled with a powder-coated finish, ensure longevity and reliable performance, even under challenging conditions.

Precision Control and Speed

Utilizing a microcontroller-based platform and stepper motor driver, this unit guarantees rapid response times of less than 5 ms. Its digital input compatibility and LED indicators deliver instant feedback and system status, enhancing user confidence and control for various automation applications.

Efficient, Safe, and Environmentally Friendly

Meet safety and regulatory standards with RoHS compliance, IS 694 adherence, and Class I protection. The air-cooled cooling system, overload protection, and compact design promote energy efficiency and operational reliability, minimizing downtime and maximizing productivity.
