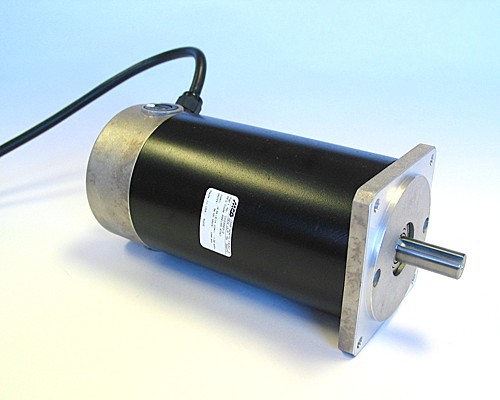

Leadshine DCM50202A

Get a Price/Quote

Product Details:

Rated Current 2A
Way Single Shaft Output
Operating Voltage 24V DC
Cooling System Air Cooling
Connectivity Type Cable Connection
Protection Class IP65
Current Rating 2A
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Leadshine DCM50202A Product Specifications

Current Rating 2A
Application Industrial Automation
Features High Torque Durable Low Noise
Components DC Servo Motor
Cooling System Air Cooling
Connectivity Type Cable Connection
Protection Class IP65
Maximum Output Current 2A
IP Rating IP65
Product Type DC Servo Motor
Operating Voltage 24V DC
Rated Voltage 24V DC
Rated Current 2A
Way Single Shaft Output
Material Aluminum and Steel
Base Material Steel
Rated Insulation Voltage Not Available
Warranty 1 Year
Protection Level Dustproof and Splashproof
Control System Closed-loop System
Cover Material Aluminum
Surface Color Black
Surface Finish Smooth Finish
Rated Operation Voltage 24V DC
Dimension (L*W*H) Compact Design - Specific dimensions not available
Standard Industry Standard Compliant

Product Description

Leadshine DCM50202A

Leadshine make Brushed DC Servo motors

Continous Torque : 0.15 Nm

Peak Torque : 0.76 Nm

Frame Size : 54 mm

Rated Voltage : 24V

Rated Power : 50W

Motor Length : 133 mm

Shaft Diameter : 6.35 mm

Encoder Feedback : 1000 ppr

FAQs of Leadshine DCM50202A:

Q: What is the rated voltage of Leadshine DCM50202A?

A: The rated voltage of Leadshine DCM50202A is 24V DC.

Q: What is the warranty period for Leadshine DCM50202A?

A: Leadshine DCM50202A comes with a 1 year warranty.

Q: What is the protection class of Leadshine DCM50202A?

A: The protection class of Leadshine DCM50202A is IP65, making it dustproof and splashproof.

Q: What is the maximum output current of Leadshine DCM50202A?

A: The maximum output current of Leadshine DCM50202A is 2A.

Q: What type of control system does Leadshine DCM50202A have?

A: Leadshine DCM50202A features a closed-loop control system.
