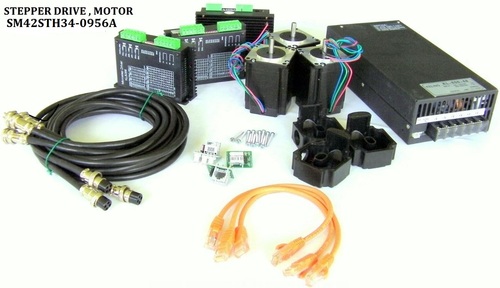

Stepping motors with Drivers

Get a Price/Quote

Product Details:

Control System Closed-loop system
Cover Material Aluminum/Steel
Features Precise motion control compact design durable construction
Connectivity Type Wired
Protection Level Basic electrical protection
Cabinet Material Metal casing for drivers
Operating Voltage 24-48V DC (typical for drivers)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Stepping motors with Drivers Product Specifications

Cover Material Aluminum/Steel
Control System Closed-loop system
Protection Level Basic electrical protection
Warranty 1 year
Cabinet Material Metal casing for drivers
Surface Finish Matte/Glossy
Features Precise motion control compact design durable construction
Application Industrial automation robotics CNC machinery
Connectivity Type Wired
Cooling System Passive cooling (heat dissipation through casing)
Base Material Metal
Operating Voltage 24-48V DC (typical for drivers)
Thickness Varies based on component
Maximum Output Current 3A
Display Type LED indicators on driver module
Standard Industry standard for step motor applications
Rated Voltage 24-48V DC
Protection Class Class I
Rated Operation Voltage 24-48V DC
Product Type Electromechanical components
Surface Color Silver (motor) Black (driver)
Dimension (L*W*H) Varies (approximately 56x56x100 mm for motors)
Components Stepper motor and driver module
Way Single-phase or multi-phase operation
IP Rating IP20 (basic protection)
Material Steel/Aluminum (Motor and Driver components)
Rated Current 3A
Current Rating Up to 3A

Product Description

86HS series Stepper motors with Motion Controllers

Bipolar Stepper motor ( 1 Nm to 22 Nm Torque )
High Torque density
High Power Rare earth Magnets
Rugged Design and long life Bearing
Low vibration , High Speed , High Torque
4 Lead / 8 Lead , Series / Parallel , Hybrid Stepper motors

Frame Size : : 28 mm to 110 mm

Capacity     : : 10 Kgcm to 220 Kgcm Torque

Current       : : 1A to 6A

RPM         : : Load Dependent Can go max upto 500 rpm

FAQs of Stepping motors with Drivers:

Q: What is the warranty period for the stepping motors with drivers?

A: 1 year

Q: What is the maximum output current for the motors?

A: 3A

Q: What is the IP rating for the stepping motors with drivers?

A: IP20 (basic protection)

Q: What is the operating voltage for the drivers?

A: 24-48V DC (typical for drivers)

Q: What is the application of the stepping motors with drivers?

A: Industrial automation robotics CNC machinery
